The plug body is made of PA engineering material, and the PCB end plug can be plugged into the XT90H-M wire end. The hardware is made of pure gold-plated copper, conforms to UL 94 V0 standard, CE/UL certified, rated voltage DC 500V, rated current 45A, operating temperature -20 ℃-120℃, instantaneous current 90A.
Item No :
XT90PW-FPayment :
Advance PaymentProduct Origin :
ChinaColor :
3 ColorShipping Port :
According To Customers WishesLead Time :
15-20 daysPrice :

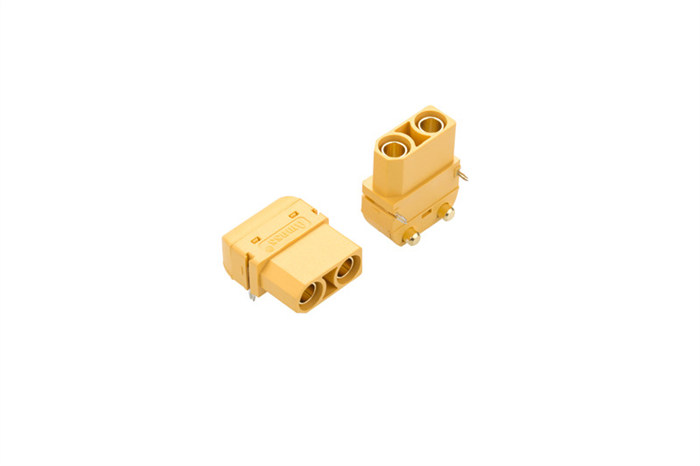

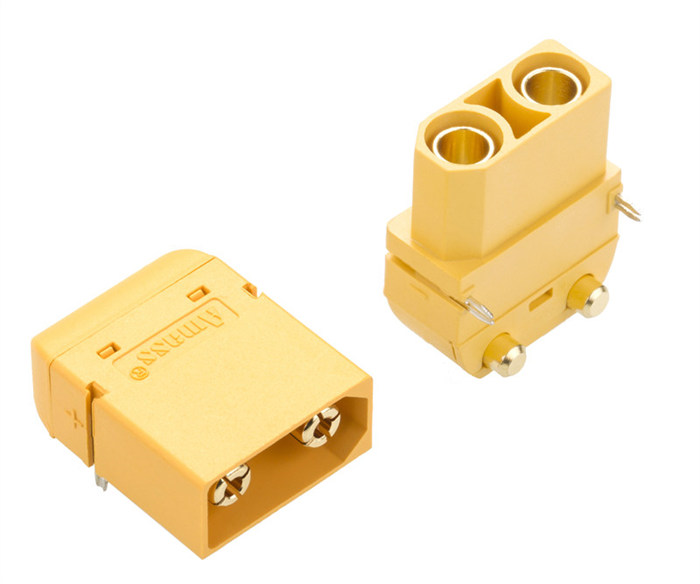

FOB PriceXT90PW-F connector plug for UAV
Plug batteries typically have high discharge rates and can provide enough power to support high-performance aerial cameras and other sensor equipment, ensuring high-quality images and video. Some plug batteries are manufactured from renewable energy or environmentally friendly materials, helping to reduce reliance on natural resources and lower environmental impact.
Application
Helping model aircraft drones, garden tools, smart robots, smart scooters, electric vehicles, energy storage equipment, smart home appliances and other fields Portable energy storage Mobile energy storage Lithium batteries
Specification:
| Item No. | XT90PW-F | Contact Resistance | 0.3mQ |
| Color | 3 Color | Rated voltage | DC 500V |
| Metal Material | Brass Gold Plated | Rated Current | 45A |
| Plastic Material | PA | Instantaneous Current | 90A |
| FR Level | UL94 V0 | Use Times | 1000times |
| Recommend USE | --- | Cable Spec. | --- |
| Certification | CE/UL | Temperature | -20°C To 120°C |
Why Choose Us?

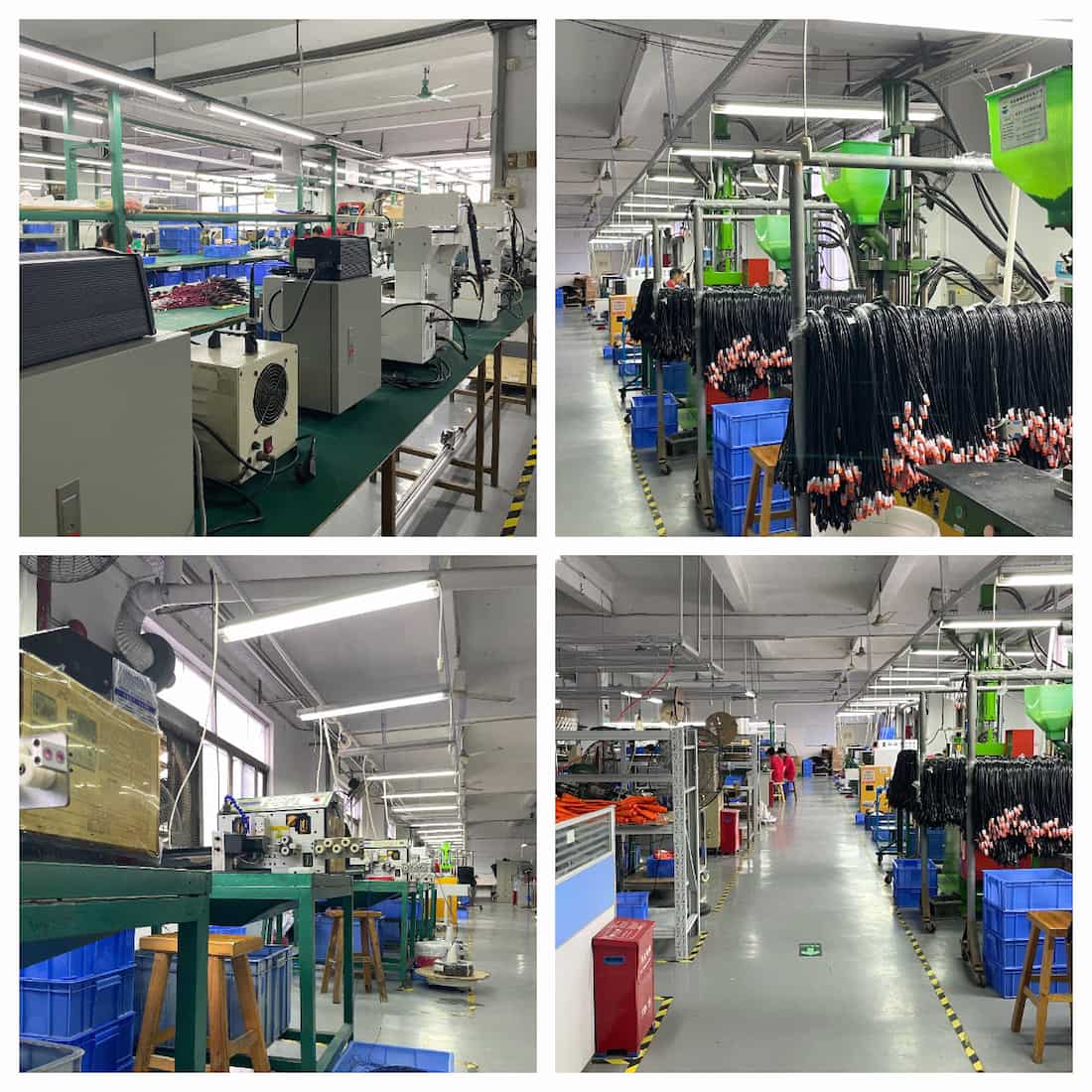

Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.
After-sale Service

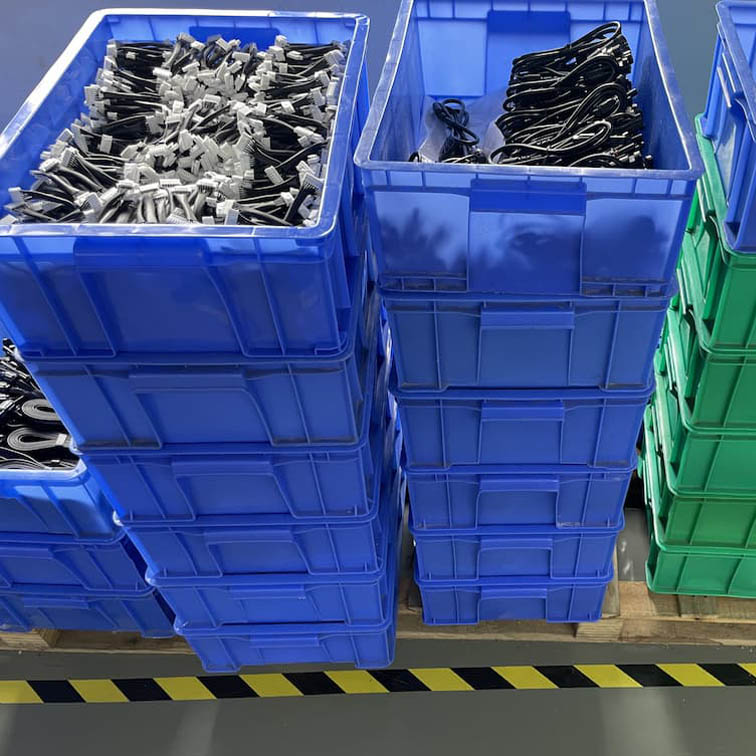

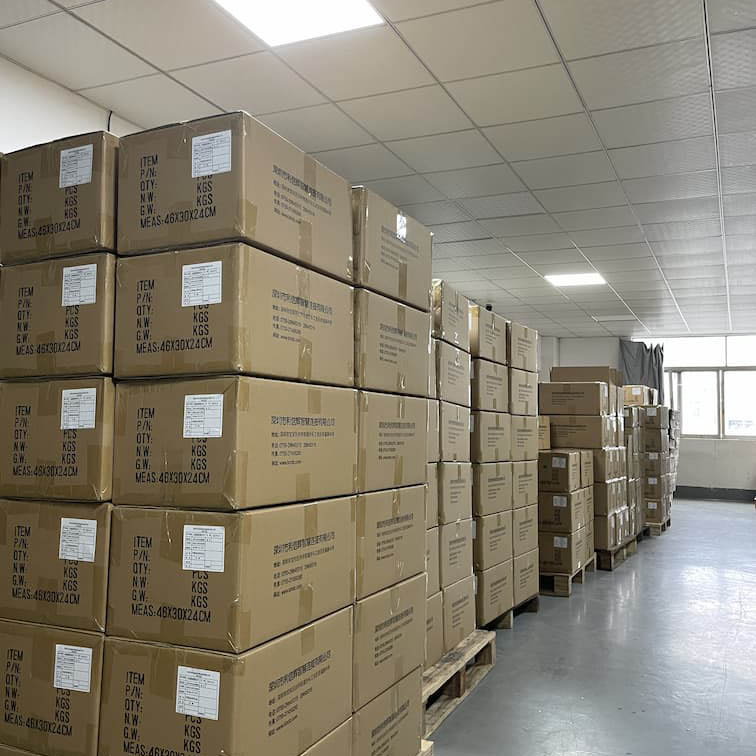

Packing & Delivery:
 |
 |
FAQ:
1. Does it support customization?
Yes, the product can be customized in color, size, etc. according to your needs to meet the needs of different applications.
2. Does it comply with relevant safety and certification standards?
Yes, our products comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.
3. How can I get more information about the technical details and customization options of these products?
You can contact our sales team for more details on technical details, customization options and quotations.
