XT60H-F connectors are known for their reliability, and they are often used in applications where high current flow is necessary, such as in drones, RC cars, boats, airplanes, and various other electronic devices. When connecting wires using XT60H-F connectors, make sure to follow proper soldering techniques and safety precautions to ensure a secure and safe electrical connection.
Item No :
XT60H-FPayment :
Advance PaymentProduct Origin :
ChinaColor :
3 ColorShipping Port :
According To Customers WishesLead Time :
15-20 daysPrice :

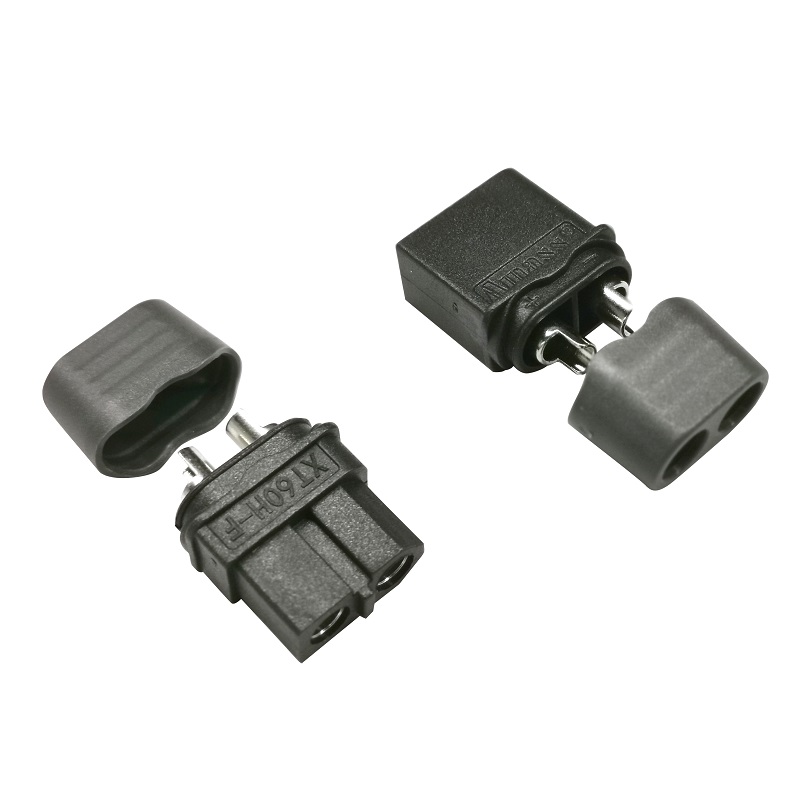

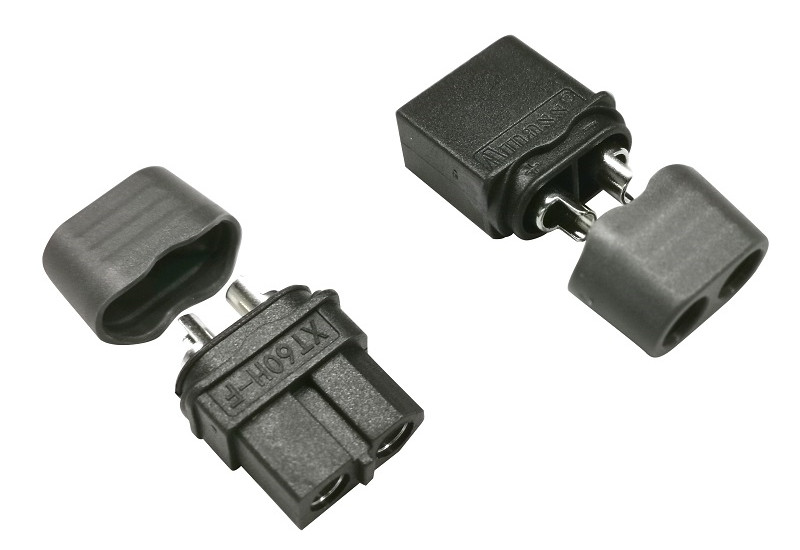

FOB PriceXT60H-F Wire Hardware Connector Plug with Cap Plug Socket
The plug body is made of PA engineering material, and the wire end plug can be used for docking with XT60PB-M XT60PW-M in the air. After welding, the tail uses a matching safety sheath, which is safer. UL certification, rated voltage DC 500V, rated current 30A, working temperature -20°C-120°C, instantaneous current 60A, recommended wire 18AWG-14AWG.
The XT60H-F Wire Hardware Connector Plug with Cap Plug Socket is a robust and reliable electrical connector commonly used in various applications, particularly in the radio-controlled (RC) hobby and other high-current electrical systems. The XT60H-F Wire Hardware Connector Plug with Cap Plug Socket is known for its durability, ability to handle high currents, and ease of use. It is widely used in applications such as RC vehicles, drones, electronic projects, and other devices where a dependable electrical connection is essential. When using XT60H-F connectors, it's important to ensure proper soldering techniques and take safety precautions to maintain a reliable and safe electrical connection.
The cap protects the socket from dust, dirt, moisture, and other contaminants, ensuring a clean and reliable connection.
.
Specification:
| Item No. | XT60H-F | Contact Resistance | 0.50mQ |
| Color | 3 | Rated voltage | DC 500V |
| Metal Material | Brass Gold Plated | Rated Current | 30A |
| Insulating Material | Plastic Material | Instantaneous Current | 60A |
| FR Level | UL94 V0 | Use Times | 1000times |
| Recommend USE | Battery | Cable Spec. | 12AWG |
| Certification | CE/UL | Temperature | -20°C To 120°C |
Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.
After-sale Service
Packing & Delivery:
 |
 |
FAQ:
1. Does it support the customization of wiring harness?
Yes, customized color and length options are available upon request to meet the needs of different applications.
2. Does it comply with relevant safety and certification standards?
Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.
3. How can I get more information on the technical details and customization options for these harnesses?
You can contact our sales team for more detailed information on technical details, customization options and quotations.
