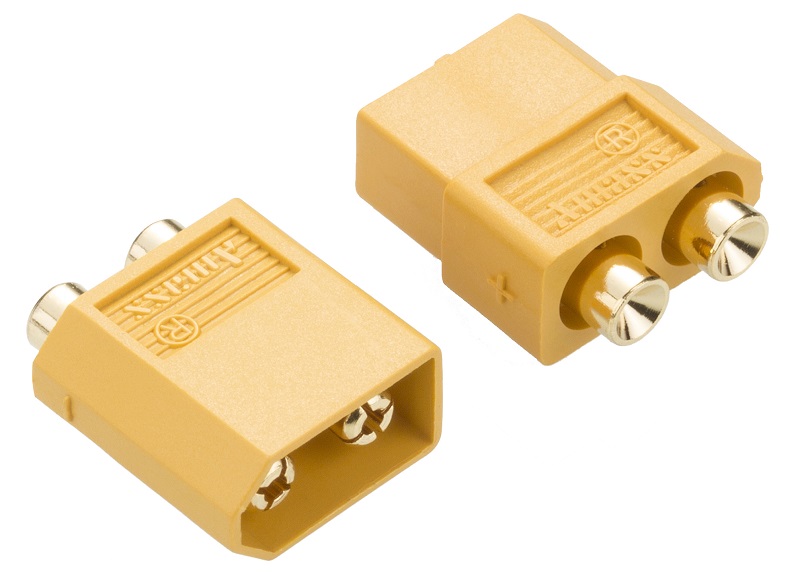

The XT60PB-F Male Female Bullet Connectors are custom power plugs commonly used in the remote control (RC), unmanned aerial vehicle (UAV), and automotive industries, particularly for connecting LiPo (Lithium-Polymer) batteries to various devices. These connectors consist of a male (plug) and female (socket) component, and they have specific characteristics and features designed for their intended applications.
Item No :
XT60PB-FPayment :
Advance PaymentProduct Origin :
ChinaColor :
3 ColorShipping Port :
According To Customers WishesLead Time :
15-20 daysPrice :
FOB PriceXT60H-M Aerial UAV Interface Plug Battery Connector
The XT60PB-F plug body is made of PA engineering material, the PCB end plug can be docked with the XT60H-M cable end in the air, the hardware is made of pure copper gold-plated, in line with UL 94 V0 standard, CE/UL certification, rated voltage DC 500V, rated current 30A, working temperature -20 ℃-120℃, instantaneous current 60A.
Application
Helping aircraft model drones, garden tools, intelligent robots, intelligent scooter, electric vehicles, energy storage equipment, smart home appliances and other fields Portable energy storage Mobile energy storage Lithium battery
Specification:
| Item No. | XT60PB-F | Contact Resistance | 0.30mQ |
| Color | 3 | Rated voltage | DC 500V |
| Metal Material | Brass Gold Plated | Rated Current | 30A |
| Insulating Material | Plastic Material | Instantaneous Current | 60A |
| FR Level | UL94 V0 | Use Times | 1000times |
| Recommend USE | Battery | Cable Spec. | PCB |
| Certification | CE/UL | Temperature | -20°C To 120°C |
Why Choose Us?

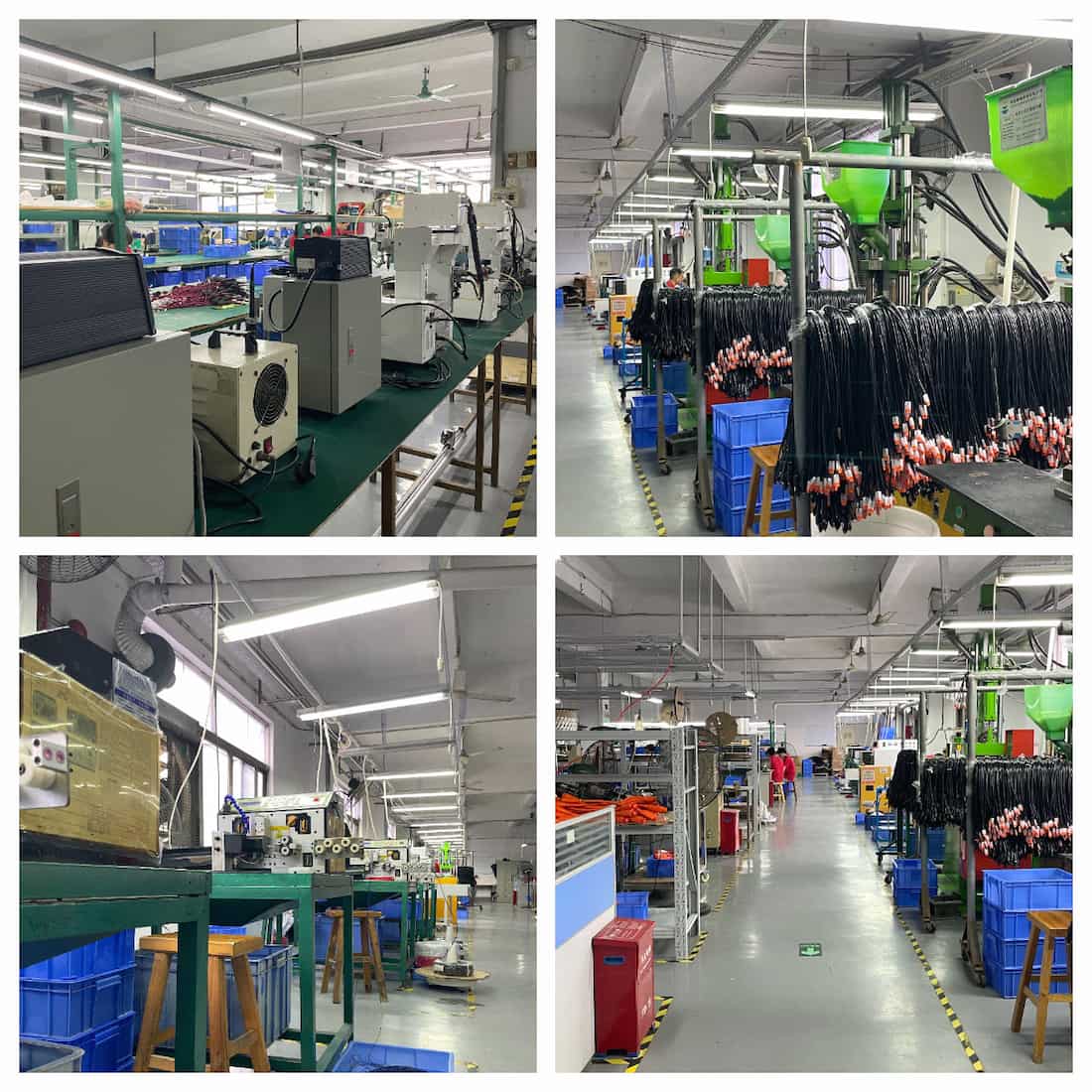

Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.
After-sale Service
Packing & Delivery:
 |
 |
FAQ:
1. Does it support the customization of wiring harness?
Yes, customized color and length options are available upon request to meet the needs of different applications.
2. Does it comply with relevant safety and certification standards?
Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.
3. How can I get more information on the technical details and customization options for these harnesses?
You can contact our sales team for more detailed information on technical details, customization options and quotations.
