The XT60U-M plug body is made of PA engineering material, and the wire end plug can be used for air docking with XT60PB-F XT60PW-F. The hardware is made of pure copper gold-plated, in line with UL 94 V0 standard, CE/UL certification, rated voltage DC 500V, rated current 30A operating temperature -20°C-120°C, instantaneous current 60A, recommended wire 18AWG-14AWG
Item No :
XT60U-MPayment :
Advance PaymentProduct Origin :
ChinaColor :
3 ColorShipping Port :
According To Customers WishesLead Time :
15-20 daysPrice :
FOB PriceXT60U-M Male & Female Power Connector With Sheath Housing

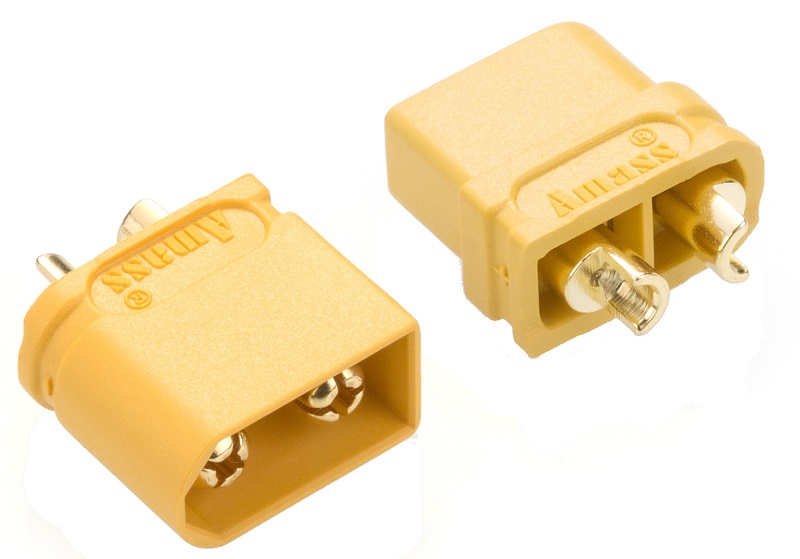

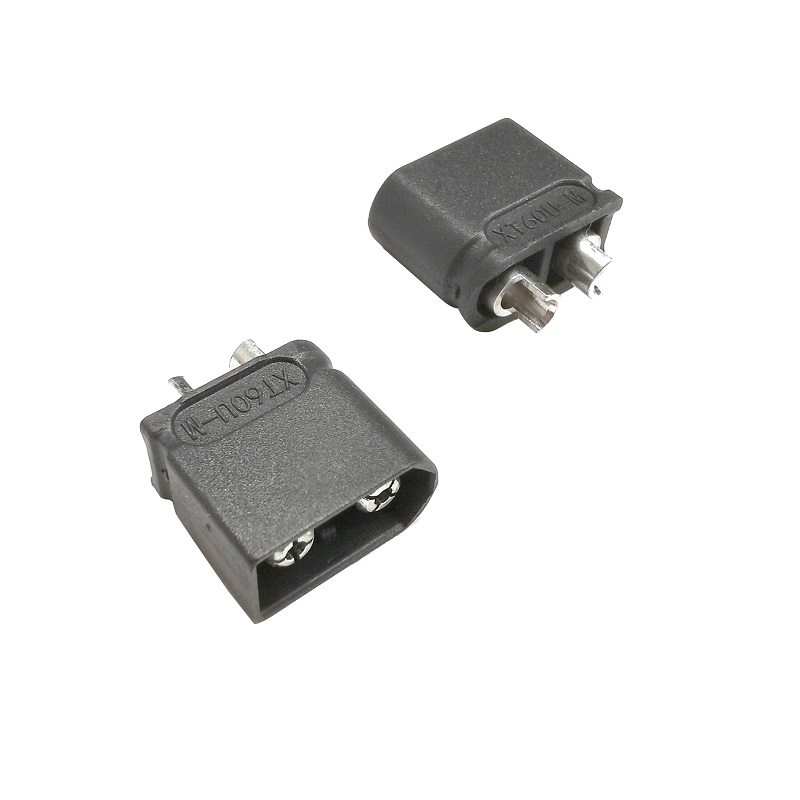

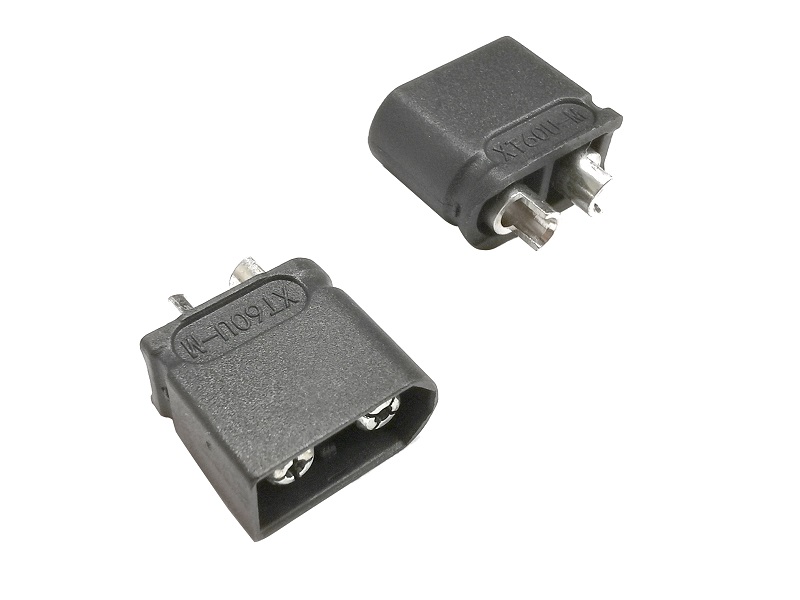

The XT60U-M Male & Female Power Connector with Sheath Housing is a versatile electrical connector set frequently employed in various applications, notably within the realm of remote-controlled vehicles, drones, and other electronic devices. This connector set consists of both male (plug) and female (socket) components, each enclosed within a protective sheath housing.
Application
Helping aircraft model drones, garden tools, intelligent robots, intelligent scooter, electric vehicles, energy storage equipment, smart home appliances and other fields Portable energy storage Mobile energy storage Lithium battery
Specification:
| Item No. | XT60U-M | Contact Resistance | 0.45mQ |
| Color | 2/3 Color | Rated voltage | DC 500V |
| Metal Material | Brass Gold Plated | Rated Current | 30A |
| Insulating Material | Plastic Material | Instantaneous Current | 60A |
| FR Level | UL94 V0 | Use Times | 1000times |
| Recommend USE | Controller | Cable Spec. | 12AWG |
| Certification | CE/UL | Temperature | -20°C To 120°C |
Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.
After-sale Service
Packing & Delivery:
 |
 |
FAQ:
1. Does it support the customization of wiring harness?
Yes, customized color and length options are available upon request to meet the needs of different applications.
2. Does it comply with relevant safety and certification standards?
Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.
3. How can I get more information on the technical details and customization options for these harnesses?
You can contact our sales team for more detailed information on technical details, customization options and quotations.
