The plug body is made of PA engineering materials, and the wire end plug can be used with XT90PB-M XT90PW-M in the air. The hardware is made of pure gold-plated copper and complies with the UL 94 V0 standard. It is CE/UL certified. The rated voltage is DC 500V and the rated current is 45A. Temperature -20℃-120℃, instantaneous current 90A, recommended wire: 14AWG-8AWG
Item No :
XT90H-FPayment :
Advance PaymentProduct Origin :
ChinaColor :
3 ColorShipping Port :
According To Customers WishesLead Time :
15-20 daysPrice :
FOB PriceXT90H-F Two Hole Power Plug For Drone Accessories
Drone plugs can be deployed quickly and do not require manual driving, so they can perform various tasks in a short time, such as aerial photography, surveying, search and rescue, monitoring, etc. This high efficiency and flexibility make it especially useful in emergency situations.
Application
Helping model aircraft drones, garden tools, smart robots, smart scooters, electric vehicles, energy storage equipment, smart home appliances and other fields Portable energy storage Mobile energy storage Lithium batteries
Specification:
| Item No. | XT90H-F | Contact Resistance | 0.3mQ |
| Color | 2/3 Color | Rated voltage | DC 500V |
| Metal Material | Brass Gold Plated | Rated Current | 45A |
| Plastic Material | PA | Instantaneous Current | 90A |
| FR Level | UL94 V0 | Use Times | 1000times |
| Recommend USE | Battery | Cable Spec. | 10AWG |
| Certification | -- | Temperature | -20°C To 120°C |
Why Choose Us?

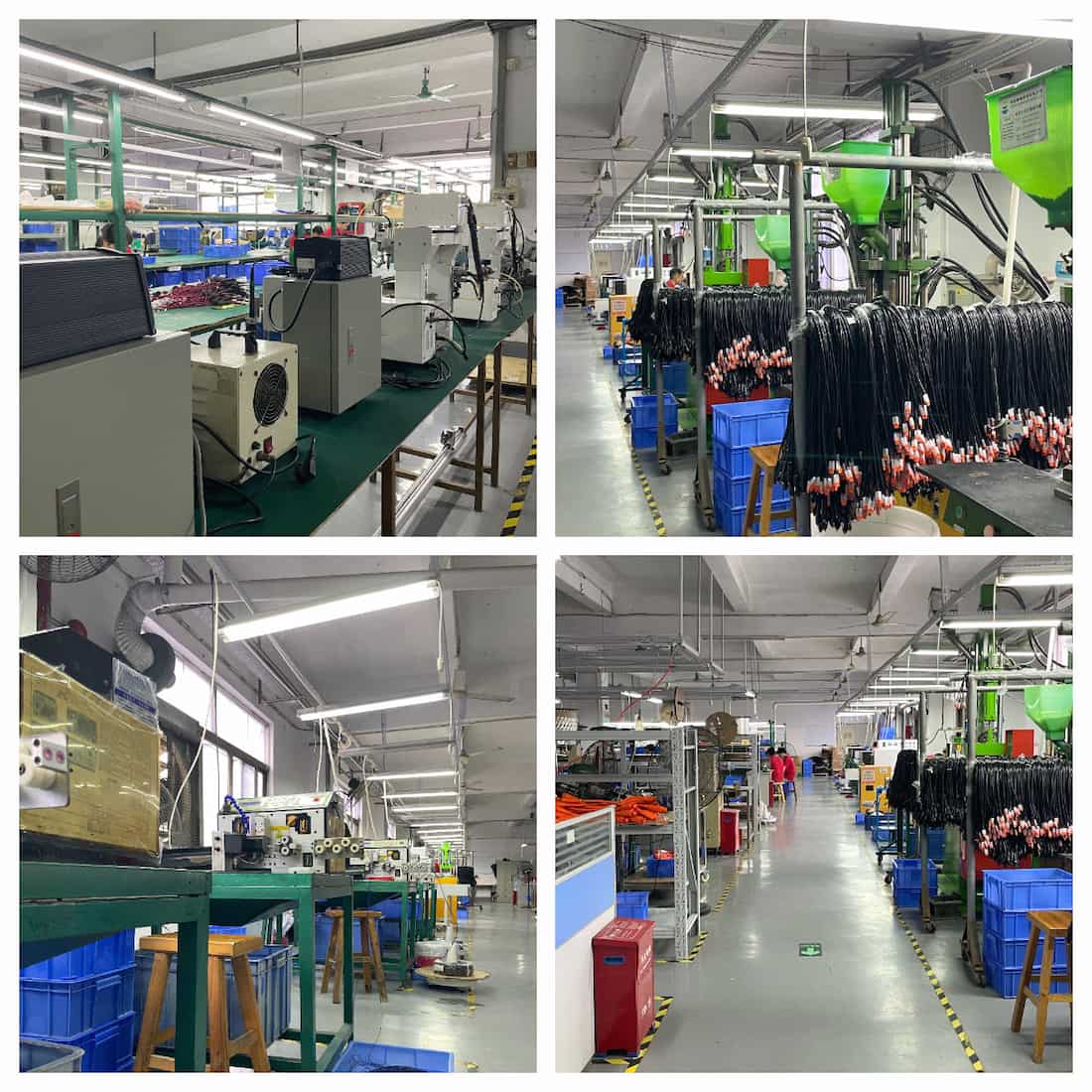

Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.
After-sale Service

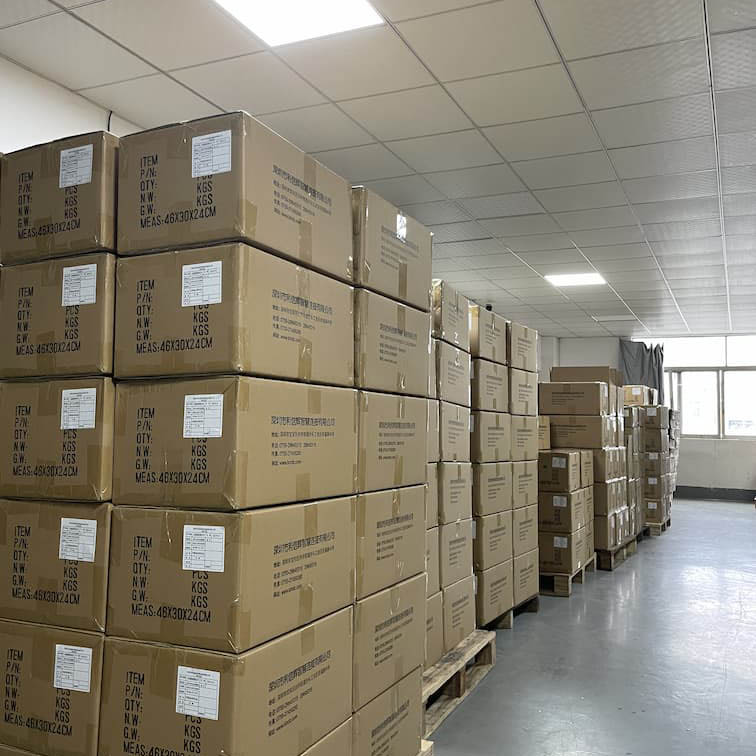

Packing & Delivery:
 |
 |
FAQ:
1. Does it support the customization of wiring harness?
Yes, customized color and length options are available upon request to meet the needs of different applications.
2. Does it comply with relevant safety and certification standards?
Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.
3. How can I get more information on the technical details and customization options for these harnesses?
You can contact our sales team for more detailed information on technical details, customization options and quotations.
